Details of the antennas installed in one of home roofs in the QMPSU Community Wireless Mesh Network.

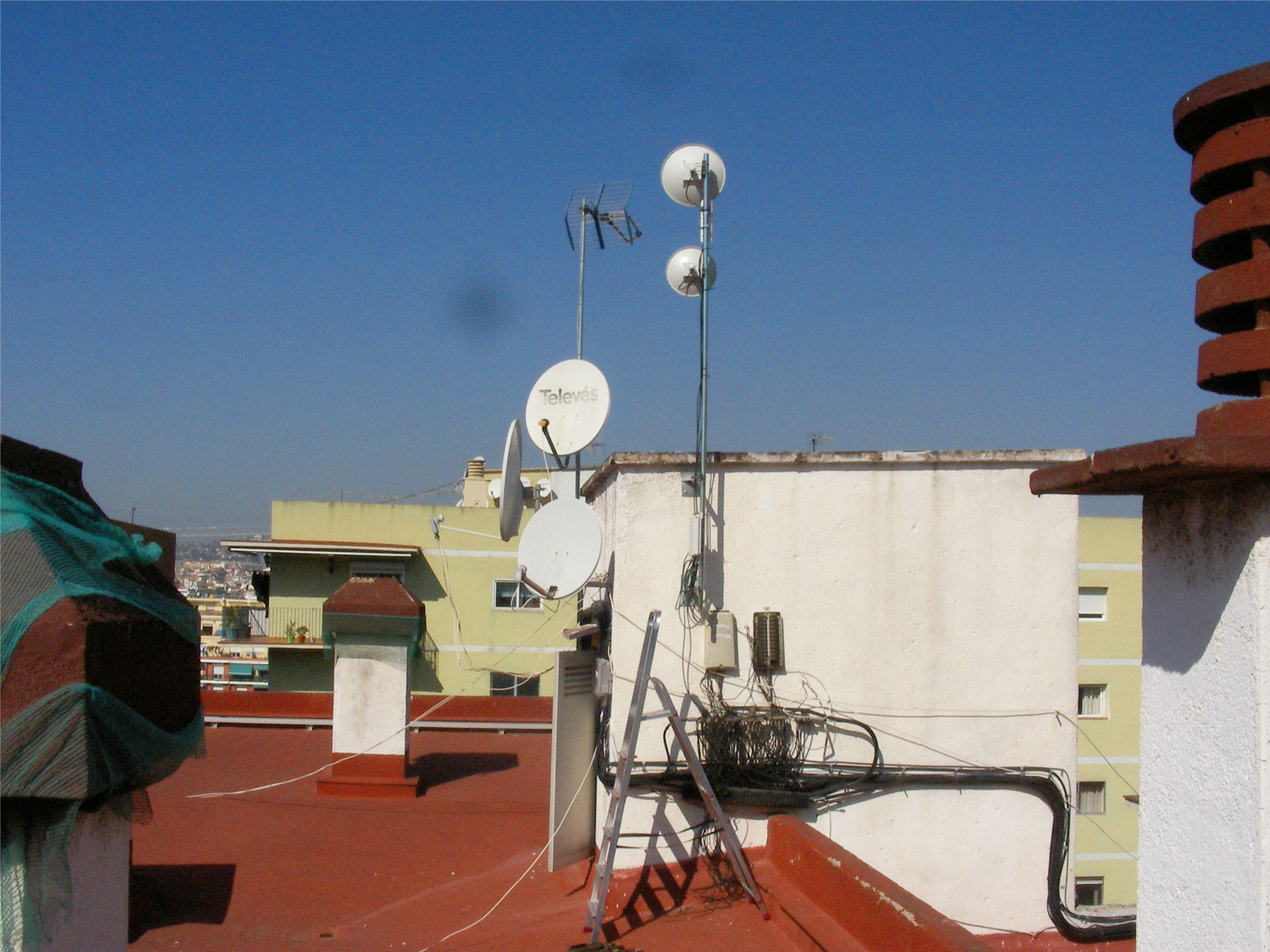

General view of the installation

Antenna detail

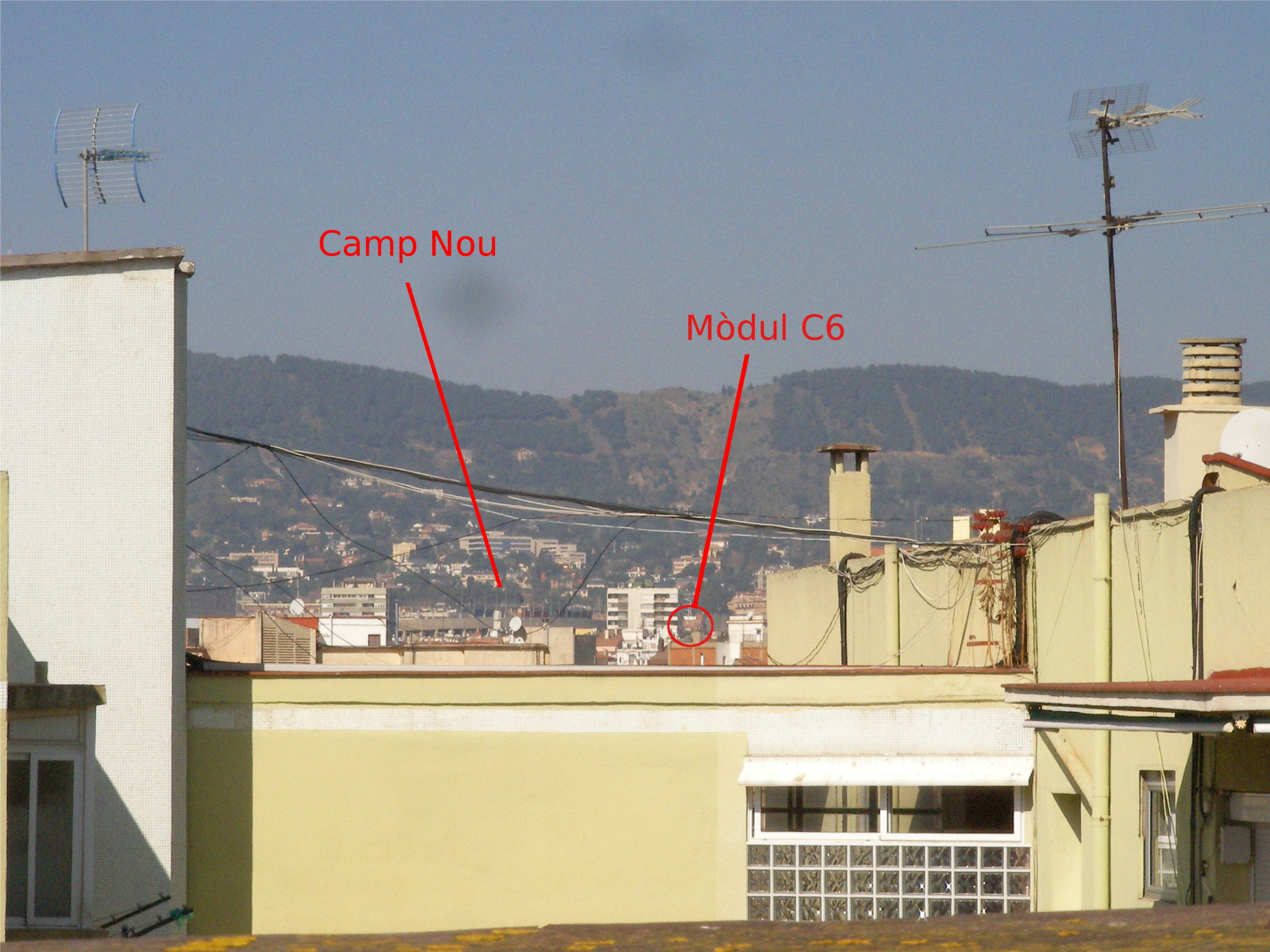

Zoom view

OS installed in the antennas:

• The Nano Bridge runs qMp. Here you have it in the QMPSU Monitoring Page
• The Nano Stations run qMp. Here you have it in the QMPSU Monitoring Page
• The PowerBeam is a point to point link with UPC, building C6. It is in bridge mode, running AirOS.

Location in google maps

References

• Experimental Evaluation of a Wireless Community Mesh Network
• Experimental Evaluation of Wireless Mesh Networks: A Case Study and Comparison
